100007414 | Telegärtner

Socket, RJ45, 8 pole, 8P8C, Cat 6A, IDC connection, flange mounting, 100007414

Order No.: 80F2009
EAN: 4018359328696
MPN:
100007414
J80020A0000

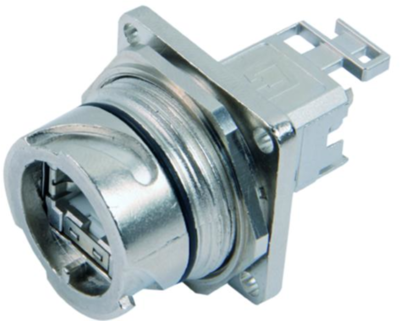

100007414 Telegärtner Modular Connectors Image 1

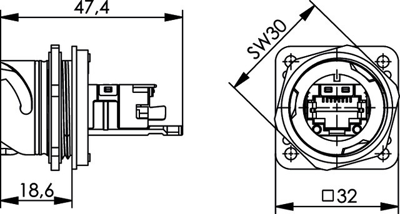

100007414 Telegärtner Modular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
66.9851 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
66.99 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
66.9851 €

Modular connector, RJ connector, J80020A0000, Telegärtner

STX V1 bulkhead set RJ45 jack Cat.6A metal

connector for modern industrial applications need to be designed in such a way that they simplify processes and cope with faster data transmission. The RJ45 plug and bulkhead inserts stand out due to high power reserves and offer transmission characteristics of Class EA acc. to ISO/IEC 11801. The FO plug and bulkhead inserts are available for GOF and POF-fibres and provide the most suitable solution for every application.

Features

  • Variant 1 acc. to IEC 61076-3-106
  • protection class IP67
  • rugged zinc diecast or plastic housing
  • storage of cables with diameter 5...10 mm
  • pre-assembled plugs and set products for simple assembly
  • available with RJ45 Cat.6A, Cat.6 Class EA, USB or FO insert

Technical Data

  • Connector type: RJ45 8(8)
  • Design: Jack
  • Suitable for round cable: No
  • Suitable for flat cable: No
  • Suitable for solid conductors: Yes
Technical specifications
Anschluss Schneidklemmanschluss
Ausführung Buchse
Kategorie Cat 6A
Montage Flanschmontage
Polbild 8P8C
Polzahl 8-polig
RJ-Variante RJ45
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
