100007421 | Telegärtner

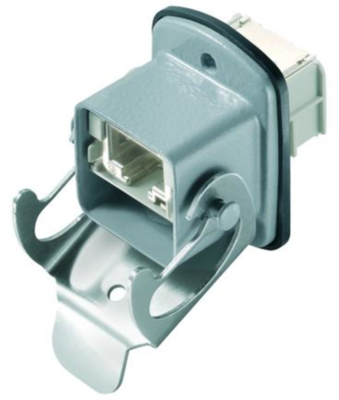

Socket, RJ45, 8 pole, 8P8C, Cat 6, flange mounting, 100007421

Order No.: 80F2016
EAN: 4018359328764
MPN:
100007421
J80020A0007
100007421 Telegärtner Modular Connectors Image 1
100007421 Telegärtner Modular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
49.2065 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
49.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
49.2065 €

Modular connector, RJ connector, J80020A0007, Telegärtner

STX V5 bulkhead set RJ45 coupler Cat.6 metal

The connector of Variant 5 are standardized in the IEC 61076-3-106, designed to meet the demands of harsh industrial environments, guaranteeing protection class IP67 whether mated or unmated (using the IP67 protection cap). The RJ45 plug and bulkhead inserts stand out due to high power reserves and offer transmission characteristics of Class EA acc. to ISO/IEC11801.

Features

  • Variant 5 acc. to IEC 61076-3-106
  • protection class IP67
  • rugged aluminium diecast housing
  • storage of cables with diameter 5...10 mm
  • pre-assembled plugs and set products for simple assembly

Technical Data

  • Connector type: RJ45 8(8)
  • Design: Jack
  • Suitable for round cable: No
  • Suitable for flat cable: No
  • Suitable for solid conductors: Yes
Technical specifications
Ausführung Buchse
Kategorie Cat 6
Montage Flanschmontage
Polbild 8P8C
Polzahl 8-polig
RJ-Variante RJ45
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei, Perfluorbutansulfonsäure (PFBS) und ihre Salze
