100023013 | Telegärtner
Plug, RJ45, 8 pole, 8P8C, Cat 6A, 100023013
Modular connector, RJ connector, J00026A0150, Telegärtner

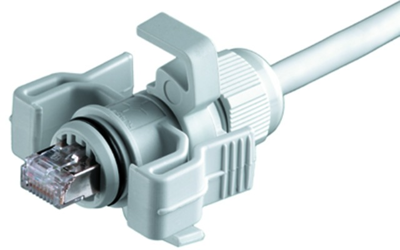

STX V6 RJ45 plug set
Connector for modern industrial applications need to be designed in such a way that they simplify processes and cope with faster data transmission. The connector of Variant 6 are standardized in the IEC 61076-3-106, designed to meet the demands of harsh industrial environments, guaranteeing protection class IP67 when mated. The locking clasps allow easy, tool-less opening as well as a secure locking with protection class IP67. The RJ45 plug and bulkhead inserts stand out due to high power reserves and offer transmission characteristics of Class EA acc. to ISO/IEC11801.
Features
- Variant 6 acc. to IEC 61076-3-106
- 8-way contact for 10 Gigabit-Ethernet
- protection class IP67
- AWG 27-24
Technical Data
- Design: Plug
- Suitable for round cable: No
- Suitable for flat cable: No
- Suitable for solid conductors: Yes
- Colour: white
Version | plug | |
Category | Cat 6A | |
Pole image | 8P8C | |
Pin number | 8 pole | |
RJ-Version | RJ45 |
Country of origin | DE |
Customs tariff number | 85366990 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
