100023204 | Telegärtner
Socket, RJ11/RJ12/RJ45, 8 pole, 8P8C, Cat 6A, 100023204
Order No.: 80F1081
EAN: 4018359471293
MPN:
100023204
J00029A3111
Unit Price (€ / pc.)
8.9131 € *
Available: 0 pcs.
Leadtime: On Request **

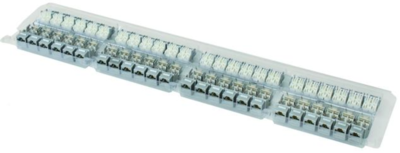

Modular connector, RJ connector, J00029A3111, Telegärtner
AMJ-S Module 2G Cat.6A T568B
Features
- Cat.6A acc. to IEC 60603-7-51
- 10 Gigabit-Ethernet compliant (IEEE 802.3an)
- suitable for POE+ (Power Over Ethernet Plus)
- overbending protection: ≥750 mating cycles with RJ45/RJ11/RJ12 plugs
- universal, world-wide available installation dimension for mounting cut-outs: 19.3x14.7 mm
Technical Data
- Connector type: RJ45 8(8)
- Design: Jack
- Suitable for round cable: No
- Suitable for flat cable: No
- Suitable for solid conductors: Yes
- Colour: silver
Technical specifications
| Version | socket | |
| Category | Cat 6A | |
| Pole image | 8P8C | |
| Pin number | 8 pole | |
| RJ-Version | RJ11/RJ12/RJ45 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
