100023168 | Telegärtner

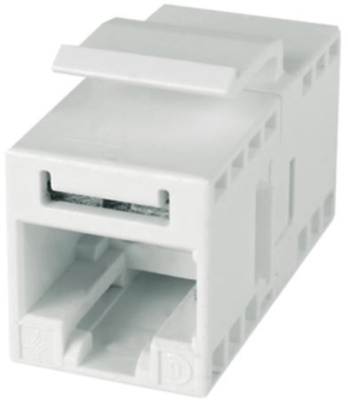

Modular adapter, RJ45 socket to RJ12 socket, straight, Cat 6, 100023168
Order No.: 80F1065
EAN: 4018359310479
MPN:
100023168
J00029A0064
Unit Price (€ / pc.)
3.9627 € *
Available: 0 pcs.
Leadtime: On Request **
J00029A0064 from Telegärtner at Bürklin Elektronik
Find on our site detailed Informationen to the product J00029A0064 from Telegärtner. The manufacturer description for this product is: UMJ-Coupling K Cat.6, f-f.More information about J00029A0064
- Class EA(IEC) 500 Permanent Link according to ISO/IEC 11801/EN 50173-1 (not Cat.5e and USB), unShielded. Universal, worldwide available Installation dimension for mounting cutouts 19.3 x 14.7 mm. 10 Gigabit Ethernet suitable (IEEE 802.3an). Fully automatically produced Class EA(IEC) 500 RJ45 core for consistently high quality standard (transmission values). Optically monitored testing of RJ45 contact heights.
- Short description: UMJ-Coupling K Cat.6, f-f
- Notes: suitable for RJ45/11/12 plug
- Installation dimension: Z121
Technical features
- Execution: Socket/Socket
- Design: other
- Mounting type: snap in
- Shielded: false
- Category: 6
- Connector type: RJ45/RJ12
Technical specifications
| Design | straight | |
| Category | Cat 6 | |
| Connector (exit) | RJ12 socket | |
| Connector | RJ45 socket |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
