100008470 | Telegärtner

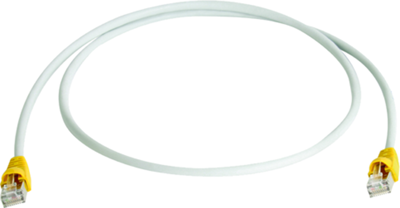

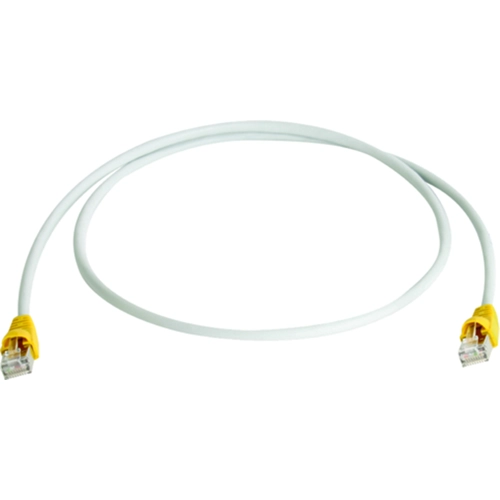

Crossover patch cable, RJ45 plug, straight to RJ45 plug, straight, Cat 6A, S/FTP, LSZH, 3 m, yellow, 100008470
Order No.: 87F1293
EAN: 4018359298968
MPN:
100008470
L00002A0120
Unit Price (€ / pc.)
12.5902 € *
Available: 46 pcs.
Leadtime: 3 Weeks **
Total Price:
12.59 € *
Price list
Quantity
Price per unit*
1 pcs.
12.5902 €
10 pcs.
11.0789 €
50 pcs.
10.3292 €
150 pcs.
9.8770 €
500 pcs.
9.3772 €
*incl. VAT plus shipping costs
**Subject to prior sale
RJ45 crossover patch cables with double shielding, halogen-free, Cat. 6A S/FTP, type Telegärtner L0000.
Suitable for 10 Gigabit Ethernet, 2 x RJ45 connectors, molded bushing and latching lever protection; Wiring: 1-3, 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5. Cable structure: Li02YSCH4 x 2 x AWG27/7 PiMF, 600 MHz. Twisted-pair shielding: aluminum film, conductive on the outside. Overall shielding: tinned copper braid. Cable outer insulation and bushing: LSZH, flame retardant, halogen-free. Color outer insulation and bushing: gray/yellow. Operating temperatures: -40 to +75 °C. Short name: MP8 FS 600 LSZH.
Technical attributes (type, length, color): L00002A0120, 3 m
Technical specifications
| Anschluss (1) | RJ45-Stecker, gerade | |
| Anschluss (2) | RJ45-Stecker, gerade | |
| Ausführung | Crossover-Patchkabel | |
| AWG-Leiterquerschnitt | AWG 27-7 | |
| Farbe | gelb | |
| Halogenfrei | Yes | |
| Kabel | S/FTP | |
| Kabellänge | 3 m | |
| Kategorie | Cat 6A | |
| Material | LSZH | |
| Pinbelegung | gekreuzt | |
| Rasthebelschutz vorhanden | Yes | |
| Schutzart (IP) | IP20 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85444210 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
