100009125 | Telegärtner

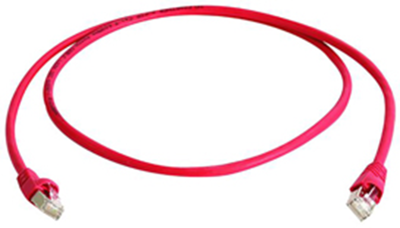

Patch cable, RJ45 plug, straight to RJ45 plug, straight, Cat 6A, S/FTP, PVC, 50 m, red, 100009125
Order No.: 87F1377
EAN: 4018359292270
MPN:
100009125
L00006A0044
Unit Price (€ / pc.)
77.9926 € *
Available: 0 pcs.
Leadtime: On Request **
RJ45 patch cables with double shielding, halogen-free, Cat. 6A S/FTP, type Telegärtner L0000.
Suitable for 10 Gigabit Ethernet, 2 x RJ45 connectors, molded bushing and latching lever protection; Wiring: 1 : 1. Cable: S/FTP Cat. 7. Cable structure: Li02YSCH 4 x 2 x AWG 27/7 PiMF, 500 MHz. Twisted-pair shielding: aluminum film, conductive on the outside. Overall shielding: tinned copper braid. Cable outer insulation and bushing: LSZH, flame retardant, halogen-free. Operating temperatures: -40 to +75 °C. Short name: MP8 FS 500 LSZH.
Technical attributes (type, length, color): L00006A0044, 50 m, red
Technical specifications
| Anschluss (1) | RJ45-Stecker, gerade | |
| Anschluss (2) | RJ45-Stecker, gerade | |
| Ausführung | Patchkabel | |
| AWG-Leiterquerschnitt | AWG 27-7 | |
| Farbe | rot | |
| Halogenfrei | Yes | |
| Kabel | S/FTP | |
| Kabellänge | 50 m | |
| Kategorie | Cat 6A | |
| Material | PVC | |
| Pinbelegung | 1:1 | |
| Rasthebelschutz vorhanden | Yes | |
| Schutzart (IP) | IP20 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85444210 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
