100023248 | Telegärtner

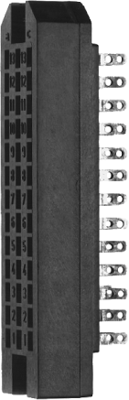

Socket header, 16 pole, pitch 2.5 mm, straight, black, 100023248
Unit Price (€ / pc.)
19.4922 € *
Available: 3 pcs.
Leadtime: 10 Weeks **
Total Price:
19.49 € *
Price list
Quantity
Price per unit*
1 pcs.
19.4922 €
10 pcs.
17.9333 €
50 pcs.
16.5053 €
100 pcs.
15.0178 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female and male connectors to DIN 41618, type Telegärtner J0004.
With silver-plated contacts. Insulating parts made of glass fiber-reinforced polycarbonate, black; Connections: tinned solder terminals. Contact arrangement: symmetrical. Test class to DIN IEC 60068-1: 40/085/21. Breakdown voltage: 1500 VRMS/50 Hz. Operating current (20 °C): 6.0 A. Operating voltage: 250 VAC/200 VDC. Useful life: 500 insertion/removal cycles. Dimensions: a 59, b 50, c 15, d 14, e 43 mm.
Female connectors.
Technical attributes (type, number of poles, housing size): J00040A0903, 16 - pole, 2
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | socket | |
| contact surface | silver-plated | |
| Rated voltage | 250 V | |
| Rated current | 6 A | |
| Orientation | straight | |
| Pin number | 16 pole | |
| Grid | 2.5 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
