100023251 | Telegärtner

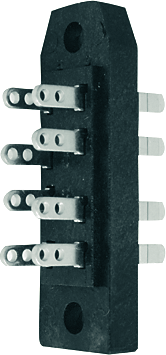

Socket header, 16 pole, pitch 3 mm, straight, black, 100023251
Unit Price (€ / pc.)
13.1852 € *
Available: 25 pcs.
Next delivery: 15 pcs. on 2025-05-14
Leadtime: 10 Weeks **
Total Price:
13.19 € *
Price list
Quantity
Price per unit*
1 pcs.
13.1852 €
10 pcs.
12.0309 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female and male connectors to DIN 41622, type Telegärtner J0004.

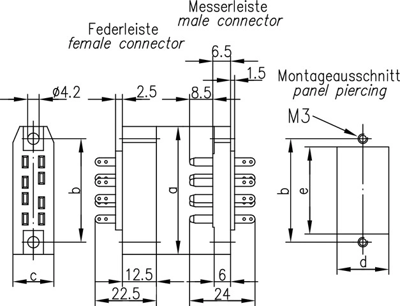

With silver-plated contacts. Insulating parts made of glass fiber-reinforced polycarbonate, black; Connections: tinned solder terminals. Contact arrangement: asymmetric. Test class to DIN IEC 60068-1: 40/085/21. Breakdown voltage: 1500 VRMS/50 Hz. Operating current (20 °C): 8.0 A. Operating voltage: 380 VAC/450 VDC. Useful life: 500 Insertion/removl cycles. Dimension: a 71, b 62, c 15, d 14, e 55 mm.
Female connectors.
Type: J00041A0915, 16 - pole, size 3
Technical specifications
| Connection | Leiterplattenanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| contact surface | versilbert | |
| Rated voltage | 380 V | |
| Rated current | 8 A | |
| Orientation | gerade | |
| Pin number | 16-polig | |
| Grid | 3 mm | |
| Type of locking | Nein |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
