0563 2512 | Testo
Testo differential pressure meter, 0563 2512, testo 512-2
Order No.: 22K8637
EAN: 4029547025723
MPN:
0563 2512
testo 512-2
Unit Price (€ / pc.)
539.6531 € *
Available: 0 pcs.
Leadtime: On Request **

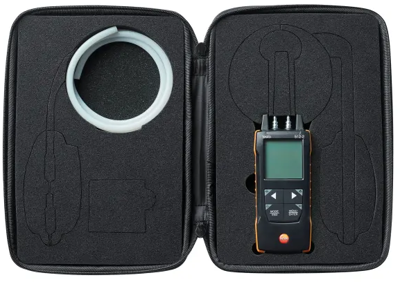

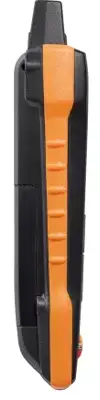

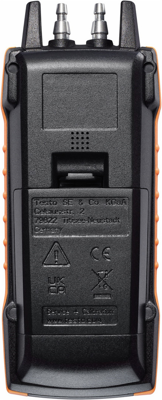

Digital differential pressure measurement, 0563 2512, Testo
The 0563 2512 is a digital differential pressure measuring instrument with App connection that has an ideal solution for simple, fast and precise measurement of gas flow and static gas pressure on heating systems, for checking filters on air conditioning systems. The Smart App supports you with useful functions such as configuration, display and storage as well as documentation of the measured values directly in the App..
Features
- Configure measuring instrument
- Display graphical measured value curve
- Save measurement data
- Manage customers and measuring sites
- Documentation on site
- E-mail dispatch of the report
Technical specifications
| Auflösung | 1 hPa | |
| Ausführung | Differenzdruck-Messgerät | |
| Genauigkeit | 0,5 %fs | |
| max. Temperatur | 50 °C | |
| Messbereich | 0 bis 2000 hPa | |
| min. Temperatur | -20 °C | |
| Schutzart (IP) | IP40 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 90262020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
