0564 5704 | Testo
Testo smart vacuum kit, 0564 5704, testo 570s Smart Vakuum Set Stromzange
Order No.: 22K8644
EAN: 4029547025945
MPN:
0564 5704
testo 570s Smart Vakuum Set Stromzange
Unit Price (€ / pc.)
1,129.31 € *
Available: 0 pcs.
Leadtime: On Request **
Smart vacuum kit, 0564 5704, Testo

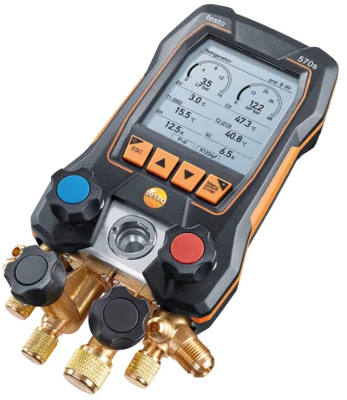

The 0564 5704 is a smart digital manifold with wireless vacuum and clamp temperature probes plus clamp meter is ideal for long-term and standard measurements. The intelligent error analysis in the Smart App ensures reliable diagnostics following a long-term measurement, eliminating the need for lengthy searches. And with the world's longest battery life of 360 hours, testo 570s is ideal for long-term measurements, but also for all kinds of short-term applications over the course of a working week. In addition, with a measuring accuracy of 0.25% fs, the manifolds offer maximum precision even at low pressure values.
Features
- Long-term measurement with intelligent error analysis in the Smart App
- Suitable for use with A3 and A2L refrigerants
Technical specifications
| Resolution | 0.1 °C, 0.01 bar, 1 micron to 100 micron | |
| Version | smart vacuum kit | |
| Accuracy | ±0.5 °C, ±0.25 %fs, ±10 micron + 10 % | |
| max. operating temperature | 50 °C | |
| measurement range | -1 to 60 bar, 0 to 20000 micron | |
| min. operating temperature | -20 °C | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
