0590 7701 | Testo
TRMS clamp meter 0590 7701, 400 A (DC), 400 A (AC), 600 V (DC), 600 V (AC), CAT III 1000 V, CAT IV 600 V
Unit Price (€ / pc.)
182.07 € *
Available: 0 pcs.
Available in 5 Days: 491 pcs.
Leadtime: 2 Weeks **

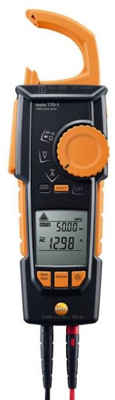

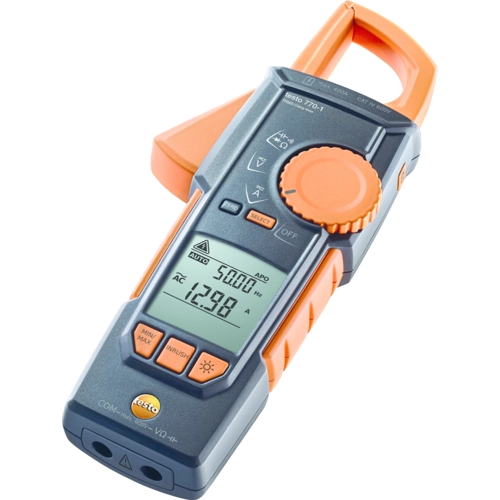

TRMS Clamp meter, 0590 7701, Testo

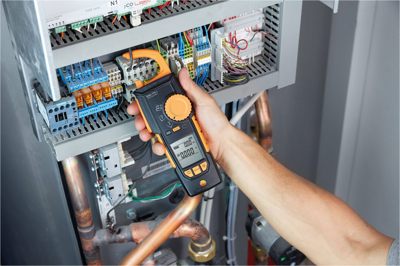

The testo 770-1 clamp meter is ideally suited for non-contact current measurement on tightly packed power cables or conductors with a small diameter. The unique grab mechanism means you can grab each individual cable easily and safely.
Scope of delivery:
TRMS current probe testo 770-3 incl. batteries and 1 set of test leads
Technical specifications
| Version | clamp meter | |
| TRMS possible | Yes | |
| max. measured value (frequency) | 10 kHz | |
| max. measured current value (AC) | 400 A | |
| max. measured current value (DC) | 400 A | |
| max. resistance range | 40 MΩ | |
| min. Measured value (frequency) | 0.01 Hz | |
| max. voltage measuring range (AC) | 600 V | |
| max. voltage measuring range (DC) | 600 V | |
| Surge voltage category | CAT III 1000 V, CAT IV 600 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90303370 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
