0590 7703 03 | Testo

TRMS AC/DC current clamp kit 0590 7703 03, 600 A (DC), 600 A (AC), 1000 V (DC), 1000 V (AC), CAT III 1000 V, CAT IV 600 V

Order No.: 22K8653
EAN: 4029547026706
MPN:
0590 7703 03
testo 770-3 Premium Set
Series: testo 770

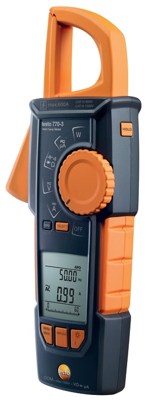

0590 7703 03 Testo Clamp Meters Image 1

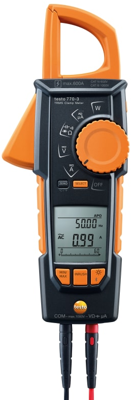

0590 7703 03 Testo Clamp Meters Image 2

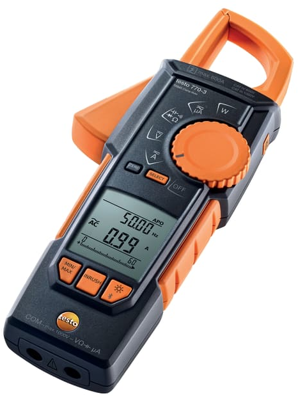

0590 7703 03 Testo Clamp Meters Image 3

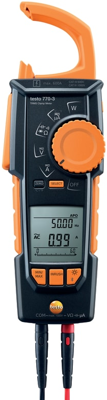

0590 7703 03 Testo Clamp Meters Image 4
0590 7703 03 Testo Clamp Meters Image 5
Image may differ
Unit Price (€ / pc.)
335.58 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
335.58 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
335.58 €

Premium kit - Clamp meter, 0590 7703 03, Testo

Non-contact measurement on tightly packed cables is really easy and reliable with the testo 770-3 clamp meter. Its innovative grab mechanism will make your work easy. The most powerful model in the clamp meter series, it offers lots of additional functions for those challenging tasks that you are faced with on a daily basis, e.g. connection to the testo Smart App and other Testo measuring instruments. Thanks to its increased resolution, the clamp meter delivers highly precise results even in the lower current range.

Features

  • Increased accuracy in the lower current range thanks to improved resolution
  • TRMS measurement
  • Auto AC/DC for voltage and large two-line display
  • Bluetooth connection to testo Smart App and other Testo measuring instruments
  • Easy to operate thanks to the retractable pincer arm

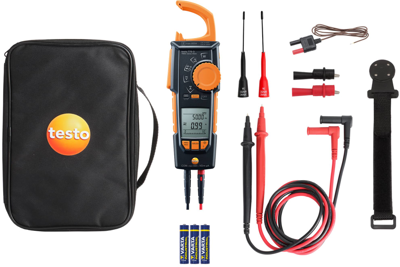

Scope of delivery

  • testo 770-3 TRMS current clamp
  • 1 set of measuring leads
  • 1 x temperature probe type K
  • 1 set of crocodile clips
  • 1 set of micro clips
  • 1 x magnetic holder
  • Transport bag
Technical specifications
Version mit Bluetooth
TRMS possible Yes
max. measured value (frequency) 9.999 kHz
max. measured current value (AC) 600 A
max. measured current value (DC) 600 A
max. resistance range 60 MΩ
min. Measured value (frequency) 0.01 Hz
Product type AC/DC-Stromzangen-Set
max. voltage measuring range (AC) 1000 V
max. voltage measuring range (DC) 1000 V
Surge voltage category CAT III 1000 V, CAT IV 600 V
Logistics
Country of origin CN
Customs tariff number 90308900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
