0590 7601 | Testo
TRMS digital multimeter 0590 7601, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 1 pF to 100 µF, CAT III 600 V, CAT IV 300 V
Unit Price (€ / pc.)
133.28 € *
Available: 0 pcs.
Available in 5 Days: 329 pcs.
Leadtime: 2 Weeks **

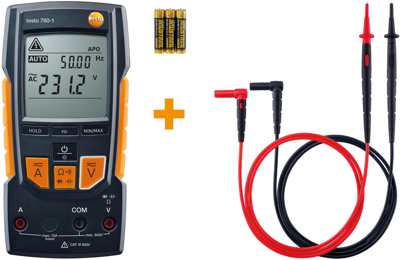

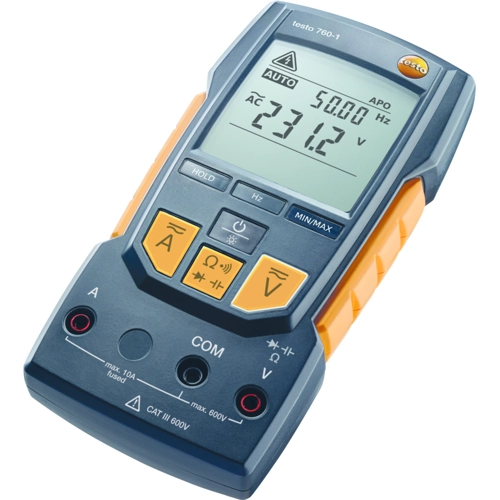

Digital Multimeter, 0590 7601, Testo
This multimeter's function and range settings are always correct, because its measurement parameters are detected and set automatically. Three easy to read buttons replace the traditional rotary switch for selecting manual test functions.
Features
- APO (Auto Power Off) saves battery life
- Rugged meter with overmold housing
- Large, backlit, dual readout display with analog bar graph is easy to read

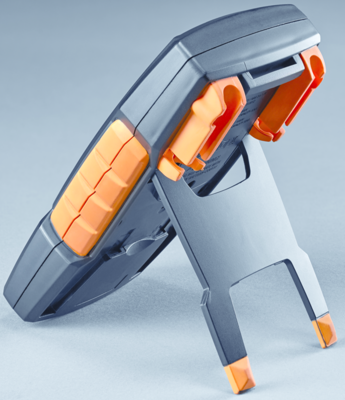

- Lead holder conveniently molded into housing for easy storage
Technical specifications
| Anzeige Digits | 4000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| Kapazitätsbereich | 1 pF bis 100 µF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 40 MΩ | |
| Spannungsmessbereich (AC) | 600 V | |
| Spannungsmessbereich (DC) | 600 V | |
| Überspannungskategorie | CAT III 600 V, CAT IV 300 V |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 90303100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 6/8/11 |
| SVHC frei | Yes |
