0590 7602 | Testo

Name: TRMS digital multimeter 0590 7602, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 1 pF to 30000 µF, CAT III 1000 V, CAT IV 600 V
Brand: Testo
SKU: 20K884
Price: 208.25 EUR
Availability: InStock

TRMS digital multimeter 0590 7602, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 1 pF to 30000 µF, CAT III 1000 V, CAT IV 600 V

Order No.: 20K884

EAN: 4029547013959

MPN:

0590 7602

testo 760-2

Series: testo 760

Image may differ

Key Specification:

Version digital multimeter

TRMS possible Yes

max. measured current value (DC) 10 A

max. measured current value (AC) 10 A

max. voltage measuring range (DC) 600 V

Ordering Information:

Scope of delivery: testo 760-2, batteries, 1 set of measuring cables and 1 x adapter for type K thermocouples. Additonal features: True RMS measurement function, Larger Current measuring range

Show 3 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

208.25 € *

Available: 2 pcs.

Available in 5 Days: 1,112 pcs.

Leadtime: 2 Weeks **

Total Price:

208.25 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Digital Multimeter, 0590 7602, Testo

This multimeter's function and range settings are always correct, because its measurement parameters are detected and set automatically. Three easy to read buttons replace the traditional rotary switch for selecting manual test functions.

Features

APO (Auto Power Off) saves battery life

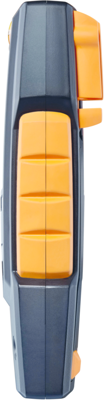

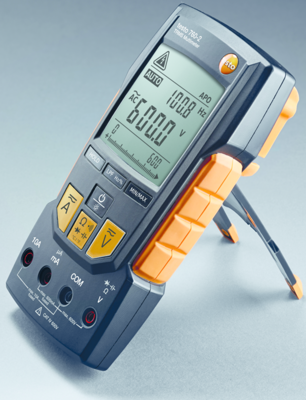

Rugged meter with overmold housing

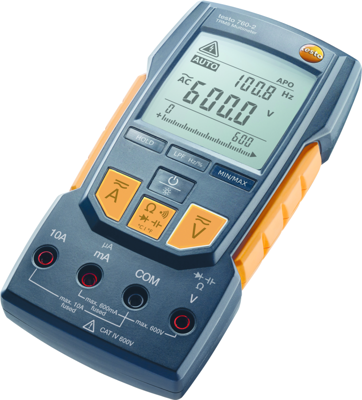

Large, backlit, dual readout display with analog bar graph is easy to read

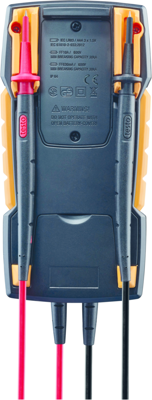

Lead holder conveniently molded into housing for easy storage

Technical specifications

	Display Digits	60000
	Version	digital multimeter
	TRMS possible	Yes
	Capacity range	1 pF to 30000 µF
	max. measured current value (AC)	10 A
	max. measured current value (DC)	10 A
	max. resistance range	40 MΩ
	max. voltage measuring range (AC)	600 V
	max. voltage measuring range (DC)	600 V
	Surge voltage category	CAT III 1000 V, CAT IV 600 V
