ULN2003AN | Texas Instruments

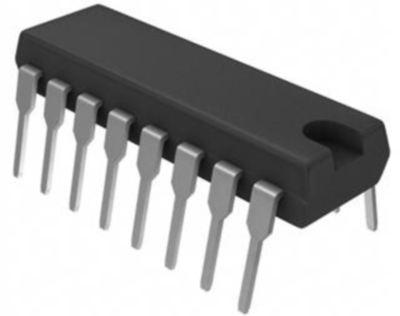

Bipolar junction transistor, NPN, 50 V, THT, DIP-16, ULN2003AN
Unit Price (€ / pc.)
0.9163 € *
Available: 636 pcs.
Leadtime: On Request **
Total Price:
0.92 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9163 €
10 pcs.
0.6783 €
100 pcs.
0.5950 €
500 pcs.
0.5117 €
1000 pcs.
0.4641 €
*incl. VAT plus shipping costs
**Subject to prior sale
Low-side switch, ULN2003AN, Texas Instruments
The ULN2003AN is a high-voltage, high-current darlington transistor arrays. Each consists of seven NPN Darlington pairs that featurehigh-voltage outputs with common-cathode clamp diodes for switching inductive loads. This device has a 2.7-kΩ series base resistor for each darlington pair for operation directly with TTL or 5-V CMOS devices.
Features
- High-voltage outputs: 50 V
- Output clamp diodes
- Inputs compatible with various types of logic
- Relay driver applications
Applications
- Stepper and DC brushed motor drivers
- Display drivers (LED and gas discharge)
- Logic buffers
- Relay drivers
- Lamp drivers
Technical specifications
| Version | NPN | |
| Enclosure | DIP-16 | |
| max.voltage between collector and emitter Vceo | 50 V | |
| Assembly | THT | |
| Rated current | 500 mA | |
| Saturation voltage | 1.1 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85412900 |
| MSL | MSL 1 |
| Original Packaging | Bar with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
