LM2594HVMX-5.0/NOPB | Texas Instruments
Conv DC-DC 4.5V to 60V Inv/Step Down Single-Out 5V
Order No.: 88S8655
EAN: 4099879091390
MPN:
LM2594HVMX-5.0/NOPB
Unit Price (€ / pc.)
3.7128 € *
Available: 0 pcs.
Leadtime: On Request **
Voltage Regulator, LM2594HVMX-5.0/NOPB, Texas Instruments
The LM2594HVMX-5.0/NOPB regulator is a monolithic integrated circuit that provides all the active functions for a step-down switching regulator, capable of driving 0.5 A load with excellent line and load regulation. This regulator requires a minimum number of external components, is simple to use, and features internal frequency compensation, a fixed-frequency oscillator, and improved line and load regulation specifications.
Features
- TTL Shutdown Capability
- Low Power Standby Mode
- High Efficiency
- Thermal Shutdown and Current-Limit Protection
Applications
- Efficient Preregulator for Linear Regulators
- On-Card Switching Regulators
- Positive-to-Negative Converter
- Simple high-efficiency step-down regulator
Technical specifications
| Output voltage DC | 5 V | |
| Output current | 500 mA | |
| Input voltage | 60 V | |
| Input voltage AC | 4.5-60 V | |

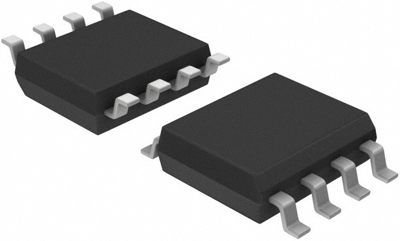

| Enclosure | SOIC-8 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD |
Download
Logistics
| Customs tariff number | 85423990 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | not_specified |
