LM2936M-5.0 | Texas Instruments

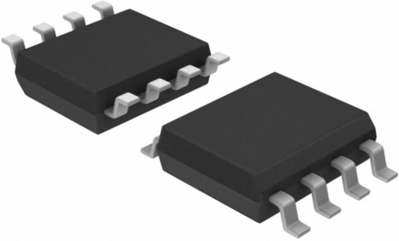

Voltage regulator, 5 VDC, 50 mA, positive, SOIC-8, LM2936M-5.0
Order No.: 41S5963
EAN: 4099879098122
MPN:
LM2936M-5.0
Unit Price (€ / pc.)
1.7136 € *
Available: 0 pcs.
Leadtime: On Request **
Voltage regulator, LM2936M-5.0, TI
The LM2936M-5 is an ultra-low quiescent current regulator features low dropout voltage and low current in the standby mode. With less than 15-μA quiescent current at a 100-μA load, the LM2936M-5 is ideally suited for automotive and other battery operated systems. The LM2936M-5 retains all of the features that is common to low dropout regulator including a low dropout PNP pass device, short circuit protection, reverse battery protection, and thermal shutdown.
Features
- ±2% initial output tolerance
- ±3% output tolerance over line, load, and temperature
- Internal short circuit current limit
- Dropout voltage typically 200 mV at IOUT = 50 mA
Applications
- Automotive
- Industrial controls
- Point of load
Technical specifications
| Number of Regulators | 1 | |
| Version | fixed | |
| Output voltage DC | 5 VDC | |
| Output current | 50 mA | |
| Input voltage AC | 4-40 V | |
| Enclosure | SOIC-8 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Polarity | positive |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Bar with 95 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
