TPS74901KTWR | Texas Instruments

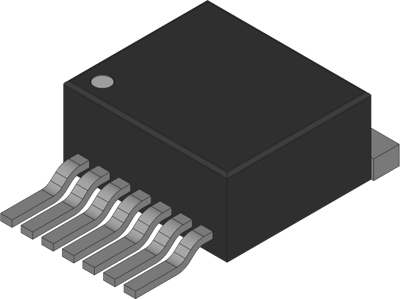

Voltage regulator, 0.8-3.6 VDC, 3 A, positive, TO-263, TPS74901KTWR
Order No.: 61S1924
EAN: 4099879101457
MPN:
TPS74901KTWR
Unit Price (€ / pc.)
3.5343 € *
Available: 0 pcs.
Leadtime: On Request **
Buck converter, TPS74901KTWR, Texas Instruments
The TPS74901KTWR is a ow-dropout (LDO) linear regulator provides an easy-to-use, robust power management solution for a wide variety of applications. Userprogrammable soft-start minimizes stress on the input power source by reducing capacitive inrush current during start-up. The soft-start is monotonic and wellsuited for powering many different types of processors and ASICs. The enable input and powergood output allow easy sequencing with external regulators, this complete flexibility permits the user to configure a solution that meets the sequencing requirements of FPGAs, DSPs, and other applications with special start-up requirements.
Features
- Adjustable start-up in-rush control
- VBIAS permits low VIN operation with good transient response
- Active high enable
Applications
- Applications with special start-up time or sequencing requirements
- Post-regulation applications
- DSP core and I/O voltages
- FPGA applications
- Servers
Technical specifications
| Number of Regulators | 1 | |
| Version | adjustable | |
| Output voltage DC | 0.8-3.6 VDC | |
| Output current | 3 A | |
| Input voltage AC | 0.8-5.5 V | |
| Enclosure | TO-263 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Polarity | positive |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85423390 |
| Original Packaging | Reel with 500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
