CD4510BE | Texas Instruments

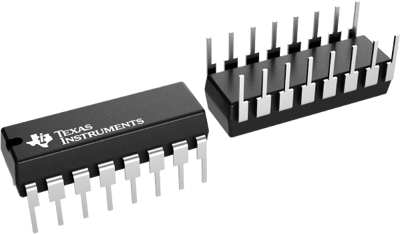

CMOS Presetable Up/Down Counter, PDIP-16, Texas Instruments CD4510BE

Order No.: 60S7750
EAN: 4099879086136
MPN:
CD4510BE
Series: 4000
Texas Instruments
CD4510BE Texas Instruments Logic Devices
Image may differ
Unit Price (€ / pc.)
1.6541 € *
Available: 745 pcs.
Leadtime: On Request **
Total Price:
1.65 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6541 €
10 pcs.
1.1900 €
100 pcs.
1.0234 €
500 pcs.
0.8925 €
*incl. VAT plus shipping costs
**Subject to prior sale

CMOS presettable BCD up/down counter, CD4510BE, Texas Instruments

The CD4510BE is a CMOS Presettable BCD Up/Down Counter consist of four synchronously clocked D-type flip-flops (with a gating structure to provide T-type flip-flop capability) connected as counters. This counter can be cleared by a high level on the RESET line and can be pre-set to any binary number present on the jam inputs by a high level on the PRESET ENABLE line. The product will count out of non-BCD counter states in a maximum of two clock pulses in the up mode and a maximum of four clock pulses in the down mode. Synchronous cascading is accomplished by connecting all clock inputs in parallel and connecting the CARRY-OUT of a less significant stage to the CARRY-IN of a more significant stage.

Features

  • Standardized symmetrical output characteristics
  • Medium speed operation
  • 100% Tested for quiescent current at 20 V

Applications

  • Up/Down difference counting
  • Multistage synchronous counting
  • Multistage ripple counting
  • Synchronous frequency dividers
Technical specifications
Output current 1.5 mA
Input voltage 18 V
Enclosure PDIP-16
max. operating temperature 125 °C
min. operating temperature -55 °C
Assembly THT
Product type CMOS Presetable Up/Down Counter
Logistics
Country of origin MY
Customs tariff number 85423390
MSL MSL 1
Original Packaging Bar with 25 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
