SN74HCT08D | Texas Instruments

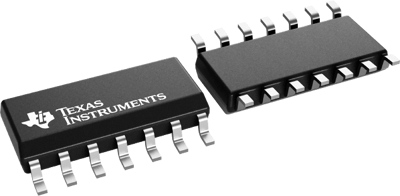

Quadruple 2-Inputs Positive AND Gate, SOIC-14, Texas Instruments SN74HCT08D
Unit Price (€ / pc.)
1.3090 € *
Available: 0 pcs.
Leadtime: On Request **
AND gate, SN74HCT08D, Texas Instruments
The SN74HCT08Ds contains four independent 2-input AND gates. They perform the Boolean function Y = A • B in positive logic.
Features
- Operating voltage range of 4.5 V to 5.5 V
- Outputs can drive up to 10 LSTTL loads
- Low input current of 1 μA max
- Inputs are TTL-voltage compatible
Technical specifications
| Output current | 4 mA | |
| Input voltage | 5.5 V | |
| Enclosure | SOIC-14 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Product type | Quadruple 2-Inputs Positive AND Gate |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
