SN74HCT245N | Texas Instruments

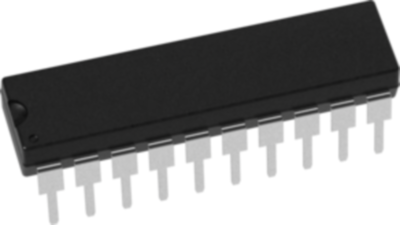

Octal bus transceiver, PDIP-20, Texas Instruments SN74HCT245N
Unit Price (€ / pc.)
0.8806 € *
Available: 2,258 pcs.
Leadtime: On Request **
Total Price:
17.61 € *
Price list
Quantity
Price per unit*
20 pcs.
0.8806 €
60 pcs.
0.8211 €
260 pcs.
0.7259 €
1000 pcs.
0.6545 €
*incl. VAT plus shipping costs
**Subject to prior sale
Octal Bus Transceivers With 3-State Outputs , SN74HCT245N, Texas Instruments
The SN74HCT245N is an octal bus transceivers that is designed for asynchronous two-way communication between data buses, the control-function implementation minimizes external timing requirements. This device allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending upon the logic level at the directioncontrol (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.
Features
- Operating voltage range of 4.5 V to 5.5 V
- High-current 3-state outputs drive bus lines directly or up to 15-LSTTL loads
- Low input current of 1 μA max
- Inputs are TTL-voltage compatible
Applications
- Factory automation and control
- Grid infrastructure
- Telecom infrastructure
- Electronic point of sale
- Multi-function printers
Technical specifications
| Enclosure | PDIP-20 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Product type | octal bus transceiver |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Bar with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
