SN74HCT541DW | Texas Instruments

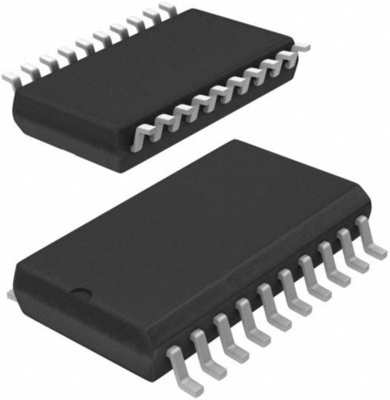

Octal Buffer/Line Driver, SOIC-20, Texas Instruments SN74HCT541DW
No longer available from manufacturer
Unit Price (€ / pc.)
1.8088 € *
Available: 130 pcs.
Leadtime: On Request **
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8088 €
10 pcs.
1.4994 €
100 pcs.
1.2852 €
250 pcs.
1.1781 €
1000 pcs.
1.0710 €
*incl. VAT plus shipping costs
**Subject to prior sale
Noninverting buffer and driver, SN74HCT541DW, Texas Instruments
The SN74HCT541DW is an octal buffer/line driver that is designed to offer a pinout with inputs and outputs on opposite sides of the package. This arrangement greatly facilitates printed circuit board layout.
Features
- Operating voltage range of 4.5 V to 5.5 V
- High-current 3-state outputs interface directly with system bus or can drive up to 15 LSTTL loads
- Low input current of 1 μA max
- Inputs are TTL-voltage compatible
- Data flow-through pinout
Technical specifications
| Output current | 6 mA | |
| Input voltage | 5.5 V | |
| Enclosure | SOIC-20 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Product type | Octal Buffer/Line Driver |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Bar with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
