SN74LS175N | Texas Instruments

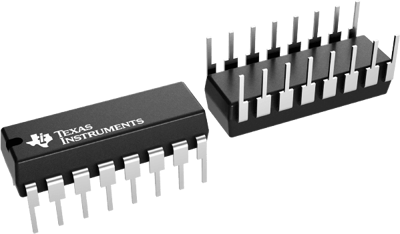

D-type flip-flops, SN74LS175N, Texas Instruments

The SN74LS175N is a positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type flip-flop logic and this circuit is fully compatible for use with most TTL circuits. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse, when the clock input is at either the high or low level, the D input signal has no effect at the output.

Features

• Contains four flip-flops with double-rail outputs
• Buffered clock and direct clear inputs
• Individual data input to each flip-flop

Applications

• Buffer/Storage registers
• Shift registers
• Pattern generators
