TLE2144CN | Texas Instruments

Quad precision operational amplifier, PDIP-14, TLE2144CN

Order No.: 49S5447
EAN: 4099879094360
MPN:
TLE2144CN
TLE2144CN Texas Instruments Operation Amplifiers

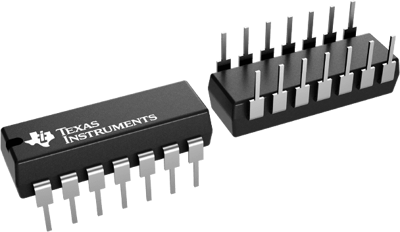

Image may differ
Unit Price (€ / pc.)
5.0099 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,127.23 € *
*incl. VAT plus shipping costs
**Subject to prior sale
225 pcs.
5.0099 €

Operational amplifier, TLE2144CN, TI

The TLE2144CN is a high-performance, internally compensated operational amplifier, built using complementary bipolar Excalibur process. The design incorporates an input stage that simultaneously achieves low audio-band noise of 10.5 nV/√Hz with a 10-Hz 1/f corner and symmetrical 40-V/μs slew rate typically with loads up to 800 pF.

Features

  • Saturation recovery
  • Fast settling time
  • Large output swing
  • Low noise
Technical specifications
Number of channels 4
Version Präzisions-Operationsverstärker
Enclosure PDIP-14
max. operating temperature 70 °C
min. operating temperature 0 °C
Assembly THT
Logistics
Country of origin MX
Customs tariff number 85423390
Original Packaging Stange mit 25 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
