TL7705ACP | Texas Instruments

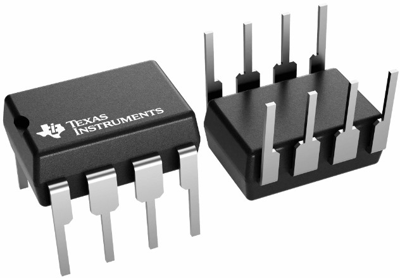

Supply-Voltage Supervisors, PDIP-8, TL7705ACP
Order No.: 49S8015
EAN: 4099879104847
MPN:
TL7705ACP
Unit Price (€ / pc.)
5.0813 € *
Available: 804 pcs.
Leadtime: 3 Weeks **
Total Price:
5.08 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0813 €
10 pcs.
4.5220 €
50 pcs.
4.0698 €
100 pcs.
3.7009 €
500 pcs.
3.4034 €
*incl. VAT plus shipping costs
**Subject to prior sale
IC, TL7705ACP, Texas Instruments
The TL7705ACP is designed specifically for use as reset controllers in microcomputer and microprocessor systems. The supply-voltage supervisor monitors the supply for undervoltage conditions at the SENSE input. During power up, the RESET output becomes active (low) when VCC attains a value approaching 3.6 V. At this point (assuming that SENSE is above VIT+), the delay timer function activates a time delay, after which outputs RESET and RESET go inactive (high and low, respectively). When an undervoltage condition occurs during normal operation, RESET and RESET go active.
Features
- Precision voltage sensor
- Temperature-compensated voltage reference
- Externally adjustable pulse duration
Applications
- Computers
- Tablets
- Smart phones
- Servers
- Music players
Technical specifications
| Number of Regulators | 1 | |
| Output voltage DC | 3.5-18 VDC | |
| Output current | 16 mA | |
| Enclosure | PDIP-8 | |
| max. operating temperature | 70 °C | |
| min. operating temperature | 0 °C | |
| Assembly | THT |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
