REF3025AIDBZT | Texas Instruments

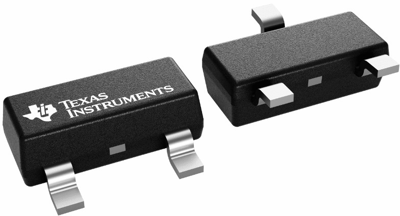

Voltage Reference IC, SOT-23-3, REF3025AIDBZT
Order No.: 53S6007
EAN: 4099879104304
MPN:
REF3025AIDBZT
Unit Price (€ / pc.)
1.0115 € *
Available: 250 pcs.
Leadtime: On Request **
Total Price:
1.01 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0115 €
25 pcs.
0.9401 €
100 pcs.
0.8806 €
250 pcs.
0.7854 €
*incl. VAT plus shipping costs
**Subject to prior sale
Voltage reference, REF3025AIDBZT, Texas Instruments
The REF3025AIDBZT is a is a precision, low-power, low-dropout voltage, reference family available in a tiny 3-pin SOT-23 package. This device offers excellent temperature drift and initial accuracy while operating at a quiescent current of 42 µA (typical). The low power consumption and the relatively high precision makes this product very attractive for looppowered industrial applications such as pressure and temperature transmitter applications.
Features
- Low dropout: 1 mV
- High output current: 25 mA
- Excellent specified drift performance
Applications
- Temperature and pressure transmitters
- Portable, battery-powered equipment
- Data acquisition systems
- Medical equipment
- Handheld test equipment
Technical specifications
| Output voltage DC | 2.5 V | |
| Output current | 25 mA | |
| Input voltage | 5.5 V | |
| Enclosure | SOT-23-3 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85423390 |
| Original Packaging | Reel with 250 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
