214-3339-00-0602 | Textool
Zero force socket, 14 pole, pitch 2.54 mm (7.62 mm), copper beryllium for DIL-IC, 214-3339-00-0602
Unit Price (€ / pc.)
24.9900 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

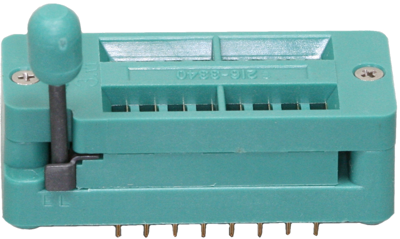

IC socket with lever for 2.54 mm DIPs, type 3M ZIP DIP.
With short locking lever, smooth mechanism and zero insertion force; Insulating body: polysulphone GF, UL 94 V-0. Contact material: beryllium copper, gold-plated on nickel primer. Rated current: 1.0 A. Operating temperatures: –55 to +150 °C.

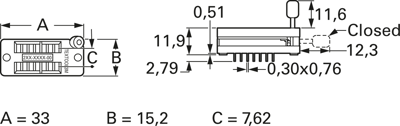

Technical attributes (number of poles, dimensions): 14-pole, A 33.00, B 15.20, C 7.62 mm
Technical specifications
| Version | zero force socket | |
| Width | 15.2 mm | |
| Suitable for | DIL-IC | |
| Contact material | copper beryllium | |
| Length | 33 mm | |
| Material | PSU | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Rated current | 1 A | |
| Pin number | 14 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
