220 09 06 S | Thora
Grounding clip, max. bundle Ø 9.9 mm, PA/silver coating, silver, (W) 9.6 mm, 220 09 06 S
Unit Price (€ / pc.)
0.7497 € *
Available: 101 pcs.
Leadtime: 2 Weeks **
Total Price:
7.50 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7497 €
50 pcs.
0.6783 €
100 pcs.
0.6069 €
500 pcs.
0.5593 €
1000 pcs.
0.5236 €
*incl. VAT plus shipping costs
**Subject to prior sale
Grounding clips, plastic, type Thora NK-.

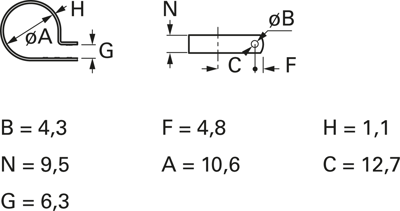

Made of PA 6/6, compliant with UL 94 V-2, silver-coated. The highly elastic clip adapts itself ideally to the grounded cable shielding; Dimensions: B 4.3, F 4.8, H 1.1, N 9.5 mm.
Technical attributes (type, cable diameter (Cd), dimensions): 6 NS, Cd 10, A 10.6, C 12.7, G 6.3 mm
Technical specifications
| Version | grounding clip | |
| Width | 9.6 mm | |
| Colour | silver | |
| Material | PA/silver coating | |
| max. Bundle diameter | 9.9 mm | |
| Self-adhesive | No |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
