170 03 062 | Thora
Shaft damper, 360°, 6.2 N/cm ±0.85, 170 03 062
Order No.: 89B5089
EAN: 4099889505511
MPN:
170 03 062
AD-FB5 6,2Ncm
Unit Price (€ / pc.)
0.7497 € *
Available: 0 pcs.
Leadtime: On Request **

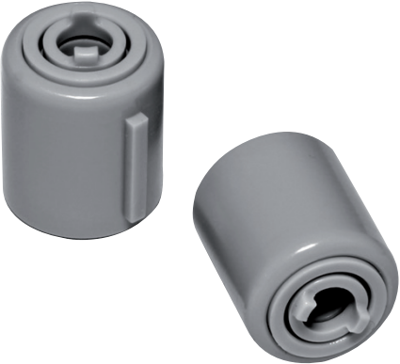

Shaft dampers, type Thora AD.
Material: base (PA 6 GF15), rotor (POM), O-ring (NBR), liquid (silicon oil). Operating temperatures: - 30 to +90 °C. Useful life: 50000 cycles (1 cycle: one clockwise plus one counterclockwise revolution).
Shaft dampers, type AD-FB5.
Shaft damper, 360°, free rotation, with 1.1 x 1.0 mm fins.
Technical attributes (type, torque): 171 03 062, 6.2 N/cm ±0.85

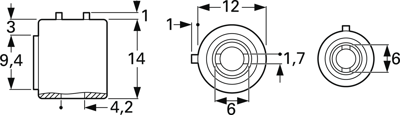

Technical specifications
| Achsdämpfer | 360° frei rotierend | |
| Ausführung | Achsdämpfer | |
| Außendurchmesser | 12 mm | |
| Drehmoment | 6,2 Ncm | |
| Farbe | weiß | |
| Für Tüllentyp | AD-FB5-062 | |
| Höhe | 14 mm | |
| Lebensdauer | 50.000 Zyklen | |
| Material | Rotor (POM), Basis (PC), O-Ring (NBR), Flüssigkeit (Silikonöl) | |
| max. Temperatur | 90 °C | |
| min. Temperatur | -30 °C |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
