171 10 075L | Thora

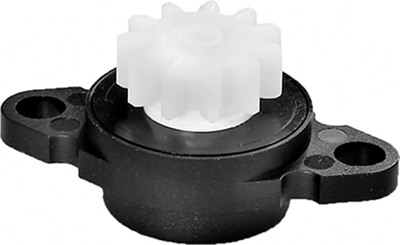

Rotational damper 7.5 N/cm ±1.3, counterclockwise FW, 171 10 075L
Order No.: 89B5075
EAN: 4099889505429
MPN:
171 10 075L
RD-DA 7,5Ncm Freilauf links
Unit Price (€ / pc.)
5.5811 € *
Available: 0 pcs.
Leadtime: On Request **
Rotational dampers, type Thora RD-DA.
With pinion, module 1.25 with 11 teeth, for screw mounting; Housing/pinion material: PA66 GF13/POM. Operating temperatures: –30 to +90 °C. Useful life: 15,000 cycles.
Technical attributes (type, torque, free wheeling (FW)): 171 10 075L, 7.5 N/cm ±1.3, counterclockwise FW

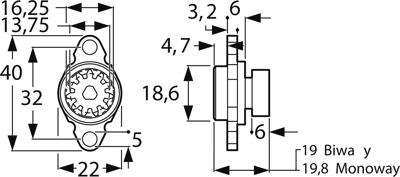

Technical specifications
| Ausführung | Rotationsdämpfer | |
| Außendurchmesser | 40 mm | |
| Befestigungsart | Montageflansch | |
| Drehmoment | 7,5 Ncm | |
| Farbe | schwarz | |
| Für Tüllentyp | RD-DA-075-L | |
| Höhe | 19.8 mm | |
| Innendurchmesser | 13.75 mm | |
| Lebensdauer | 15.000 Zyklen | |
| Lochdurchmesser | 5 mm | |
| Material | Gehäuse PA66 GF13, Ritzel POM | |
| max. Temperatur | 90 °C | |
| min. Temperatur | -30 °C |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
