CX-230 | TOHTSU
RF relays, 1 Form C (NO/NC), 50 Ω, 1 GHz, 136 mA, 12 V (DC), CX-230
Unit Price (€ / pc.)
167.3378 € *
Available: 8 pcs.
Leadtime: 3 Weeks **
Total Price:
167.34 € *
Price list
Quantity
Price per unit*
1 pcs.
167.3378 €
5 pcs.
157.4965 €
10 pcs.
147.6552 €
25 pcs.
137.8139 €
50 pcs.
127.9726 €
*incl. VAT plus shipping costs
**Subject to prior sale

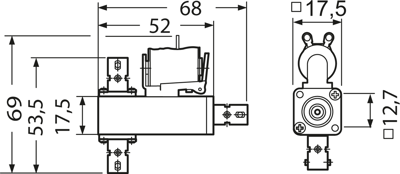

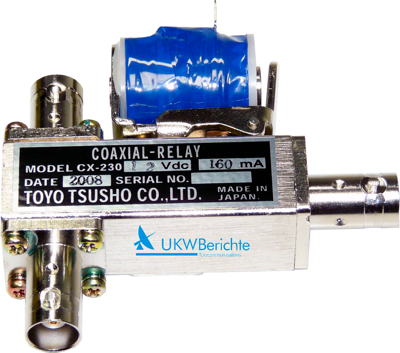

Coax relays, type TOHTSU CX-230.
With three BNC jacks; Impedance: 50 ohm. Contact arrangement: 1 x CO. Rated voltage: 12 VDC. Voltage range: 10 to 14 VDC. Rated current at +20 °C: 136 mA at 12 VDC. Coil resistance at +20 °C: 88 ohm (±10 %). Response/release time: max. 20/15 ms. RF power rating: 300 W/50, 150 and 500 MHz, 200 W/1000 MHz. Forward attenuation (max.): 0.05 dB/50 and 150 MHz, 0.1 dB/500 MHz, 0.2 dB/1000 MHz. Crosstalk attenuation (min.): 56 dB/50 MHz, 42 dB/150 MHz, 30 dB/500 MHz, 24 dB/1000 MHz. Operating temperatures: –25 to +50 °C.
Type: CX-230, coax relay
Technical specifications
| Connection | BNC connector | |
| Frequency | 1 GHz | |
| Impedance | 50 Ω | |
| Contact type | 1 Form C (NO/NC) | |
| Rated voltage (DC) | 12 V | |
| Rated current | 136 mA | |
| Coil resistance | 88 Ω | |
| Standing wave ratio | max 1.3 VSWR |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 84733080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
