CX-520D | TOHTSU
RF relays, 1 Form C (NO/NC), 50 Ω, 2 GHz, 139 mA, 12 V (DC), CX-520D
Unit Price (€ / pc.)
181.9272 € *
Available: 9 pcs.
Leadtime: 3 Weeks **
Total Price:
181.93 € *
Price list
Quantity
Price per unit*
1 pcs.
181.9272 €
5 pcs.
171.2291 €
10 pcs.
161.7210 €
25 pcs.
149.8210 €
50 pcs.
139.1229 €
*incl. VAT plus shipping costs
**Subject to prior sale

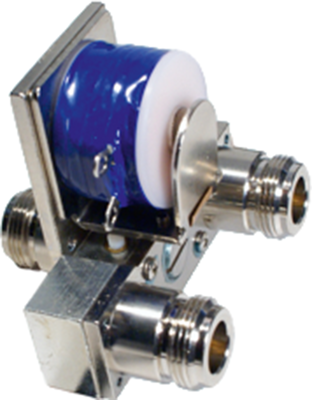

Coax relays, type TOHTSU CX-520D.
With three N jacks; Impedance: 50 ohm. Contact: 1 x CO. Rated voltage: 12 VDC. Voltage range: 10 to 14 VDC. Rated current at +20 °C: 139 mA at 12 VDC. Coil resistance at +20 °C: 86 ohm (±10 %). Response/release time: typically 20/15 ms. RF power rating: 350 W/50MHz, 300 W/500 MHz, 250 W/1000 and 150 W/2000 MHz. Forward attenuation (max.): 0.1 dB/50, 0.18 dB/500 MHz, 0.2 dB/1000 MHz, 0.25 dB/2000 MHz. Crosstalk attenuation (min.): 65 dB/50 MHz, 53 dB/500 MHz, 46 dB/1000 MHz, 39 dB/2000 MHz. Operating temperatures: –25 to +50 °C.
Type: CX-520D, coax relay
Technical specifications
| Connection | N connector | |
| Frequency | 2 GHz | |
| Impedance | 50 Ω | |
| Contact type | 1 Form C (NO/NC) | |
| Rated voltage (DC) | 12 V | |
| Rated current | 139 mA | |
| Coil resistance | 86 Ω | |
| Standing wave ratio | max 1.2 VSWR |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 84733080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
