TK72E12N1,S1X(S | Toshiba

Name: Toshiba N channel MOSFET, 120 V, 72 A, TO-220, TK72E12N1,S1X(S
Brand: Toshiba
SKU: 69S5765
Price: 1.90 EUR
Availability: OutOfStock

Toshiba N channel MOSFET, 120 V, 72 A, TO-220, TK72E12N1,S1X(S

Order No.: 69S5765

EAN: 4099879034885

MPN:

TK72E12N1,S1X(S

Series: TK72E1

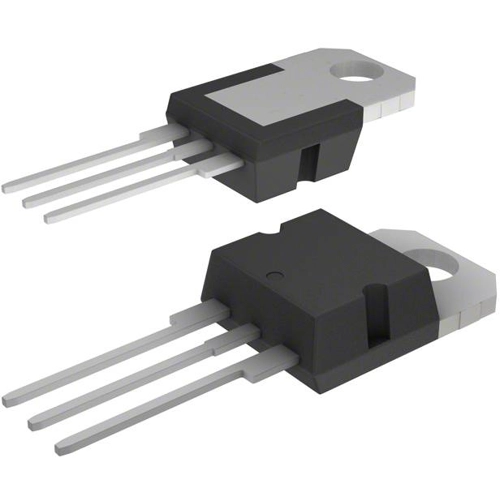

Image may differ

Key Specification:

Version N channel

max. Voltage 120 V

Max. current 72 A

drain-source on resistance RDS (on) max @VGS=10V 4.4 mΩ

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.9040 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

1.90 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

MOSFET, TK72E12N1,S1X(S, Toshiba

MOSFETs Silicon N-channel MOS (U-MOS-H)

Features

Low drain-source on-resistance
Low leakage current

Applications

Switching voltage regulators

Technical specifications

	Version	N channel
	drain-source on resistance RDS (on) max @VGS=10V	4.4 mΩ
	Gate Charge Qg @10V (nC)	1.3x10<sup>-7</sup> C

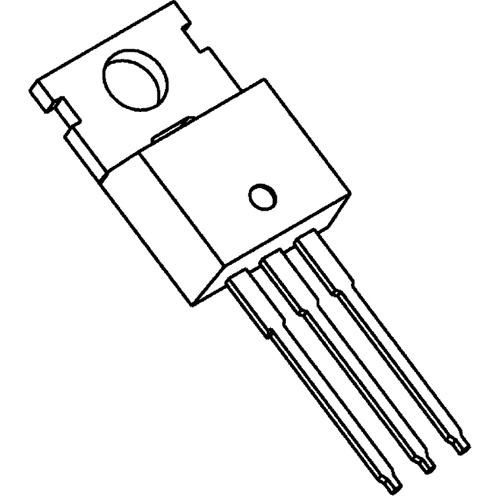

	Enclosure	TO-220
	max. Voltage	120 V
	Max. current	72 A
	max. operating temperature	150 °C
	min. operating temperature	-55 °C
	Assembly	THT
