TLP292-4(GB-TP,E(T | Toshiba

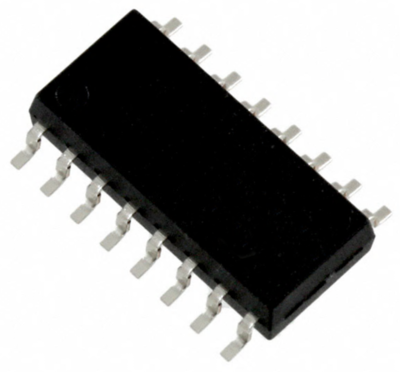

Toshiba optocoupler, SMD-4, TLP292-4(GB-TP,E(T
Unit Price (€ / pc.)
0.9401 € *
Available: 0 pcs.
Leadtime: On Request **
Optocoupler, TLP292-4(GB-TP,E(T, Toshiba
TLP292-4 consists of phototransistors optically coupled to two InGaAs infrared emitting diodes connected inverse parallel, and can operate directly by AC input current.
TLP292-4 is housed in the very small and thin SO16 package. Since TLP292-4 is guaranteed wide operating temperature (Ta=-55 to 125 ˚C) and high isolation voltage (3750 Vrms), it is suitable for high-density surface mount applications such as programmable controllers.
Features
- Collector-Emitter Voltage : 80 V (min)
- Isolation Voltage : 3750 Vrms (min)
- Operation temperature range: -55 to 125 ˚C
Technical specifications
| Rise time | 2 s | |
| Number of channels | 4 | |
| Output current | 50 mA | |
| Enclosure | SMD-4 | |
| Isolation voltage | 3.75 kV | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Fall time | 3 s |
Download
Logistics
| Customs tariff number | 85414900 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
