TLP292(GB,E(T | Toshiba

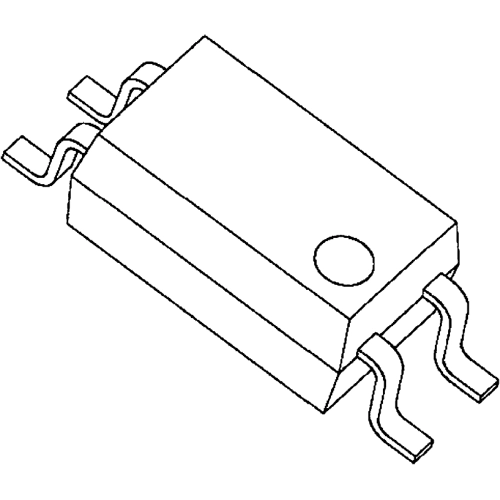

Toshiba optocoupler, SOIC-4, TLP292(GB,E(T
Unit Price (€ / pc.)
0.2416 € *
Available: 0 pcs.
Leadtime: On Request **
Photocoupler, TLP292(GB,E(T, Toshiba
The TLP292(GB,E(T is a high isolation and a low AC input type photocoupler that consists of phototransistor optically coupled to two antiparallel infrared LEDs in a SO4 package. Since TLP292 is guaranteed high isolation voltage (3750 Vrms) and wide operating temperature (Ta = -55 to 125 C), it is suitable for high density surface mounting applications such as small type switching power supplies and programmable controllers.
Applications
- Switching power supplies
- Programmable Logic Controllers (PLCs)
- I/O Interface boards
Technical specifications
| Rise time | 2 s | |
| Number of channels | 1 | |
| Output current | 50 mA | |
| Enclosure | SOIC-4 | |
| Isolation voltage | 3.75 kV | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Fall time | 3 s |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85414900 |
| MSL | MSL 1 |
| Original Packaging | Bulk with 175 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
