TLP3240(TP15,F) | Toshiba

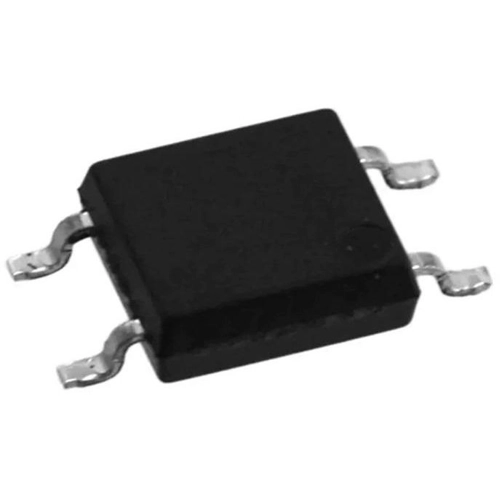

Toshiba optocoupler, SOP-4, TLP3240(TP15,F)
Unit Price (€ / pc.)
2.5347 € *
Available: 0 pcs.
Leadtime: On Request **
Photocoupler, TLP3240(TP15,F), Toshiba
The TLP3240(TP15,F) is a super small-outline photorelay, suitable for surface-mount assembly. It consists of an infrared emitting diode optically coupled to a photo-MOS FET and housed in a 4-pin package. Its characteristics also include low OFF-state current and low output pin capacitance, enabling it to be used in high-frequency measuring instruments.
Technical specifications
| Rise time | 200 s | |
| Number of channels | 1 | |
| Output current | 120 mA | |
| Enclosure | SOP-4 | |
| Isolation voltage | 1.5 kV | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -20 °C | |
| Assembly | SMD | |
| Fall time | 200 s |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85414900 |
| MSL | MSL 1 |
| Original Packaging | Reel with 1,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
