TMG 30105 | TRACO POWER
AC/DC converter, 90-264 VAC/120-370 VDC, 7 W, 1 output, 12 VDC, TMG 30105
Unit Price (€ / pc.)
60.9161 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
60.92 € *
Price list
Quantity
Price per unit*
1 pcs.
60.9161 €
10 pcs.
54.8233 €
*incl. VAT plus shipping costs
**Subject to prior sale

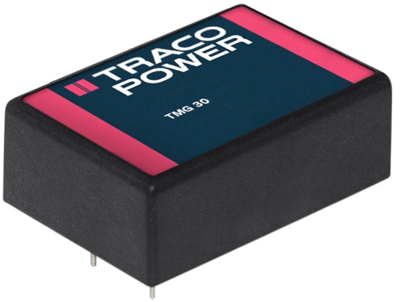

Power supply module, TMG 30105, TRACO
The TMG series AC/DC power modules are supplied in a fully encapsulated plastic housing. They are ultra-compact, energy-efficient and their price-performance ratio is optimized for the prevailing market requirements. The high efficiency and the use of high-quality components make these modules suitable for an operating temperature range of -40°C to +70°C. Together with a very low no-load power consumption, they are suitable for applications that comply with the ErP directive. The modules are protected against short circuit and overvoltage. EMI/EMC characteristics and the safety approval package qualify them for demanding applications in equipment for industrial or commercial environments.
Features
- Completely encapsulated power supplies in plastic housing for PCB mounting
- Fully regulated outputs
- High efficiency of up to 90
- Universal input range 90 to 264 VAC
- Operating temperature range: -40°C to max. +70°C
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 12 VDC | |
| Ausgangsstrom | 5 A | |
| Bauform | Leiterplattenmontage | |
| Breite | 27.4 mm | |
| Eingangsspannungsbereich | 90-264 VAC/120-370 VDC | |
| Höhe | 18.7 mm | |
| Isolationsspannung | 3 kV | |
| Länge | 27.4 mm | |
| Leistung | 7 W | |
| Wirkungsgrad | 80 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
