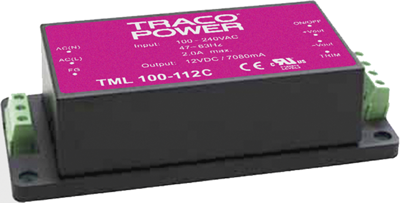

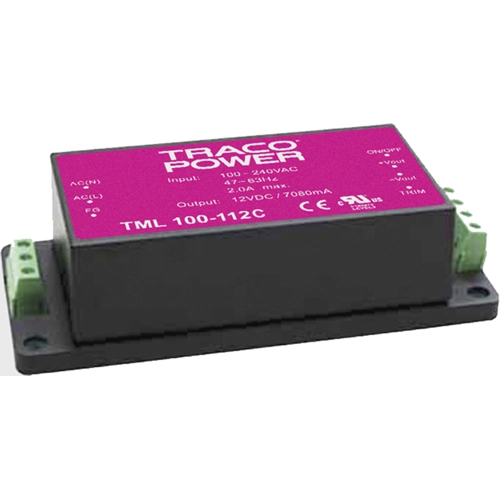

TML 100-112C | TRACO POWER
AC/DC converter, 120-370 V, 85 W, 1 output, 12 VDC, TML 100-112C
Unit Price (€ / pc.)
174.3588 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
174.36 € *
Price list
Quantity
Price per unit*
1 pcs.
174.3588 €
10 pcs.
156.9134 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power modules, type Traco TML 100..C.
Sealed plastic housing, compact design, screw terminals, integrated filter to EN 55022 class B, remote On/Off, low leakage current; Input voltage range: 90 to 264 VAC, 120 to 370 VDC. Input frequency: 47 to 63 Hz. Power factor: min. 0.95 (230 VAC). Output voltage adjustment: ±5.0 %. Insulation voltage: 3000 VAC. Operating temperatures: –25 to +70 °C. MTBF: 250000 h at 25 °C. Dimensions: 140 x 62 x 36.6 mm. Weight: 440 g.
Technical attributes (type, output power, output voltage, output current, efficiency (230 VAC)): TML 100-112C, 85 W, 12 VDC, 7.0 A, 91 %
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 12 VDC | |
| Output current | 7.08 A | |
| Design | chassis mounting | |
| Width | 60 mm | |
| Input voltage AC | 120-370 V | |
| Height | 37.1 mm | |
| Isolation voltage | 3 kV | |
| Length | 140 mm | |
| Power | 85 W | |
| efficiency | 90 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
