TML 100-148C | TRACO POWER
AC/DC converter, 120-370 V, 85 W, 1 output, 48 VDC, TML 100-148C
Unit Price (€ / pc.)
177.8455 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
177.85 € *
Price list
Quantity
Price per unit*
1 pcs.
177.8455 €
10 pcs.
160.0550 €
*incl. VAT plus shipping costs
**Subject to prior sale

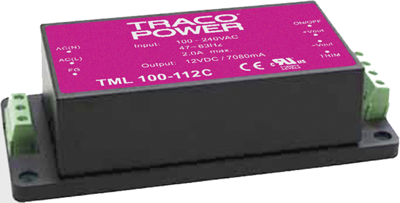

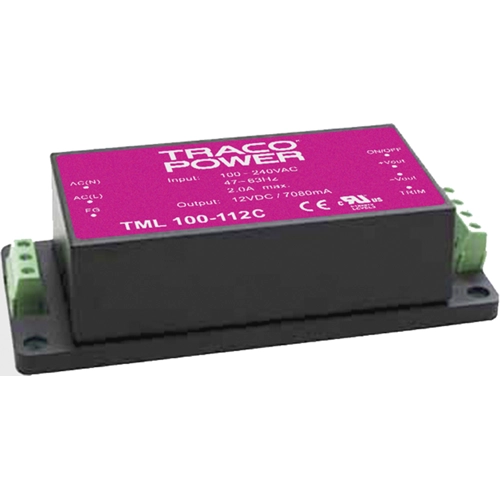

Power modules, type Traco TML 100..C.
Sealed plastic housing, compact design, screw terminals, integrated filter to EN 55022 class B, remote On/Off, low leakage current; Input voltage range: 90 to 264 VAC, 120 to 370 VDC. Input frequency: 47 to 63 Hz. Power factor: min. 0.95 (230 VAC). Output voltage adjustment: ±5.0 %. Insulation voltage: 3000 VAC. Operating temperatures: –25 to +70 °C. MTBF: 250000 h at 25 °C. Dimensions: 140 x 62 x 36.6 mm. Weight: 440 g.
Technical attributes (type, output power, output voltage, output current, efficiency (230 VAC)): TML 100-148C, 100 W, 48 VDC, 2.1 A, 94.5 %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 48 VDC | |
| Ausgangsstrom | 2.1 A | |
| Bauform | Chassismontage | |
| Breite | 60 mm | |
| Eingangsspannungsbereich | 120-370 V | |
| Höhe | 37.1 mm | |
| Isolationsspannung | 3 kV | |
| Länge | 140 mm | |
| Leistung | 85 W | |
| Wirkungsgrad | 93 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
