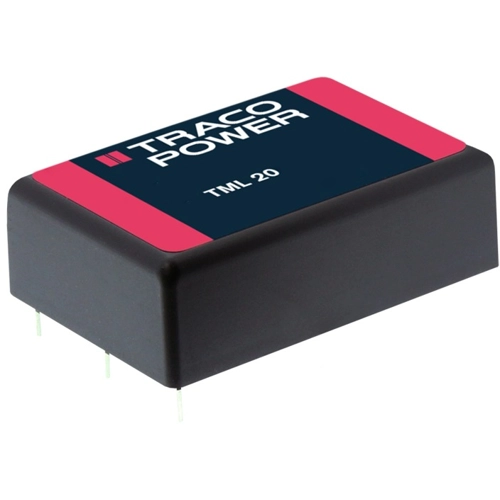

TML 20515 | TRACO POWER
AC/DC converter, 90-264 V, 20 W, 3 outputs, 5/15 VDC, TML 20515
Unit Price (€ / pc.)
70.5789 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
70.58 € *
Price list
Quantity
Price per unit*
1 pcs.
70.5789 €
10 pcs.
63.5222 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power modules, type Traco TML.
Switching mode power supply, molded, short-circuit and overload protection, input filter to EN 55022 (class B and FCC, level B); Input voltage range: 90 to 264 VAC, 100 to 375 VDC. Line frequency: 47 to 440 Hz. Output voltage adjustment tolerance (symmetrical load): ±2.0 %. Leakage current: max. 0.75 mA. Insulation voltage: 3000 VAC. Safety class TML 20/TML 40: I/II to IEC/EN 60536.
For PCB mounting, type TML 20.
Operating temperatures: –25 to +60 °C. Weight:110 g.
Technical attributes (type, max. output power, number of outputs, output voltage, output current): TML 20515, 20 W, 3 outputs, 5.0/±15 VDC, 2800/±200 mA
Technical specifications
| Anzahl der Ausgänge | 3 | |
| Ausgangsspannungsbereich | 5/15 VDC | |
| Ausgangsstrom | 2.8 A | |

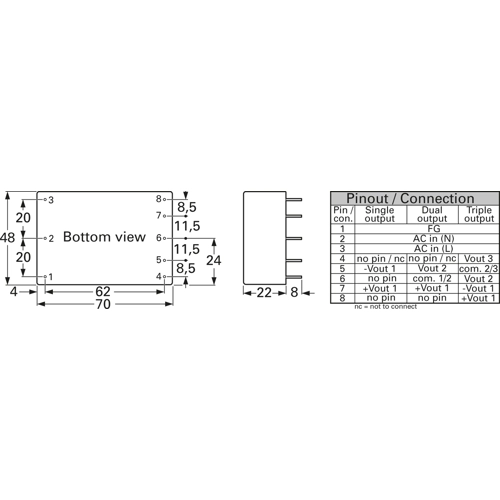

| Bauform | Leiterplattenmodul | |
| Breite | 48 mm | |
| Eingangsspannungsbereich | 90-264 V | |
| Höhe | 22 mm | |
| Isolationsspannung | 3 kV | |
| Länge | 70 mm | |
| Leistung | 20 W | |
| Wirkungsgrad | 84 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044083 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
