TML 40205C | TRACO POWER
AC/DC converter, 90-264 VAC, 40 W, 2 outputs, ±5 VDC, TML 40205C
Unit Price (€ / pc.)
104.0774 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
104.08 € *
Price list
Quantity
Price per unit*
1 pcs.
104.0774 €
10 pcs.
93.6530 €
*incl. VAT plus shipping costs
**Subject to prior sale

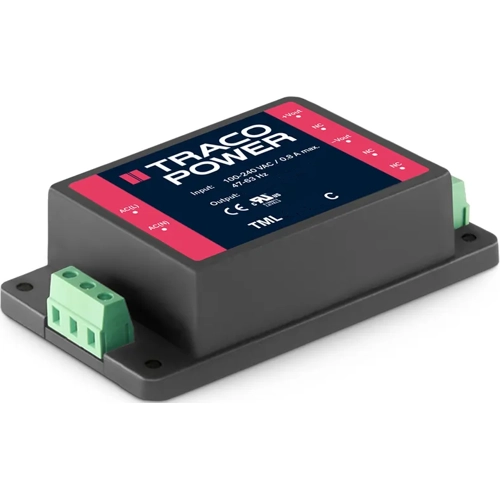

Power modules, type Traco TML.
Switching mode power supply, molded, short-circuit and overload protection, input filter to EN 55022 (class B and FCC, level B); Input voltage range: 90 to 264 VAC, 100 to 375 VDC. Line frequency: 47 to 440 Hz. Output voltage adjustment tolerance (symmetrical load): ±2.0 %. Leakage current: max. 0.75 mA. Insulation voltage: 3000 VAC. Safety class TML 20/TML 40: I/II to IEC/EN 60536.

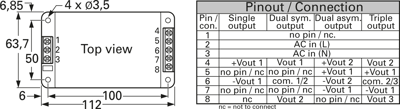

For chassis mounting, type TML 40.
Operating temperatures: –40 to +60 °C. Height: 32.5 mm. Weight: 325 g.
Technical attributes (type, max. output power, number of outputs, output voltage, output current): TML 40205C, 40 W, 2 outputs, ±5.0 VDC, ±4000 mA
Technical specifications
| Number of outputs | 2 | |
| Output voltage DC | ±5 VDC | |
| Output current | 4 A | |
| Width | 63.7 mm | |
| Input voltage AC | 90-264 VAC | |
| Height | 32.5 mm | |
| Length | 112 mm | |
| Power | 40 W | |
| efficiency | 84 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044083 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
