TMLM 04112 | TRACO POWER

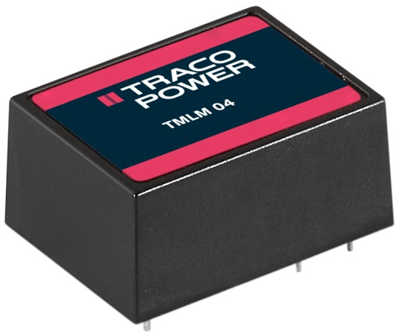

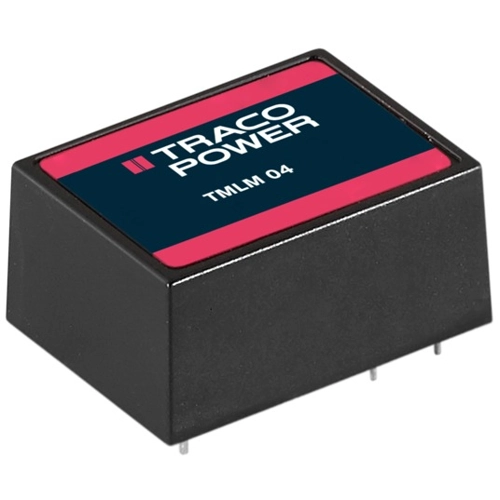

AC/DC converter, 120-370 V, 4 W, 1 output, 12 V, TMLM 04112
Unit Price (€ / pc.)
18.4212 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
18.42 € *
Price list
Quantity
Price per unit*
1 pcs.
18.4212 €
10 pcs.
16.5886 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power supply modules, type Traco TMLM.
In molded plastic case, with solder pins for PCB mounting. Short-circuit and overload protection. RF interference suppression to EN 55022 Class B and FCC (Level B).
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 12 V | |
| Output current | 333 mA | |
| Design | PCB module | |
| Width | 27 mm | |
| Input voltage AC | 120-370 V | |
| Height | 17.1 mm | |
| Isolation voltage | 3 kV | |
| Length | 36.5 mm | |
| Power | 4 W | |
| efficiency | 70 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044083 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
