TMP 30124 | TRACO POWER
AC/DC converter, 85-264 VAC/120-370 VDC, 30 W, 1 output, 24 VDC, TMP 30124
Unit Price (€ / pc.)
62.2370 € *
Available: 0 pcs.
Next delivery: 10 pcs. on 2025-02-11
Leadtime: 14 Weeks **
Total Price:
62.24 € *
Price list
Quantity
Price per unit*
1 pcs.
62.2370 €
10 pcs.
56.0133 €
*incl. VAT plus shipping costs
**Subject to prior sale

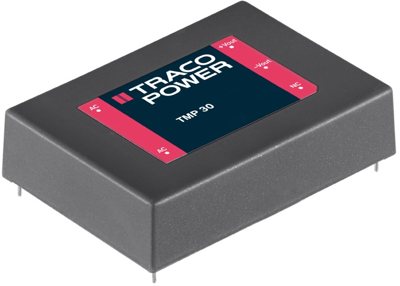

Power modules, type Traco TMP.
Flat, molded switching mode power supply module with short-circuit and overload protection
For PCB mounting, type TMP 30.
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 24 VDC | |
| Output current | 1.25 A | |
| Design | PCB mounting | |
| Width | 63.5 mm | |
| Input voltage AC | 85-264 VAC/120-370 VDC | |
| Height | 21.7 mm | |
| Isolation voltage | 3 kV | |
| Length | 88.9 mm | |
| Power | 30 W | |
| efficiency | 80 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044083 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
