TMPS 03-115 | TRACO POWER

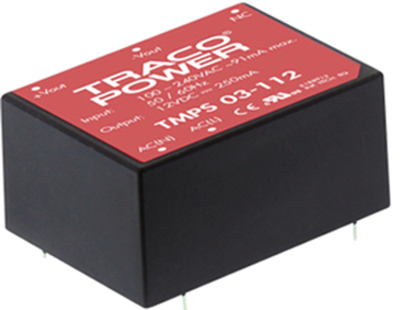

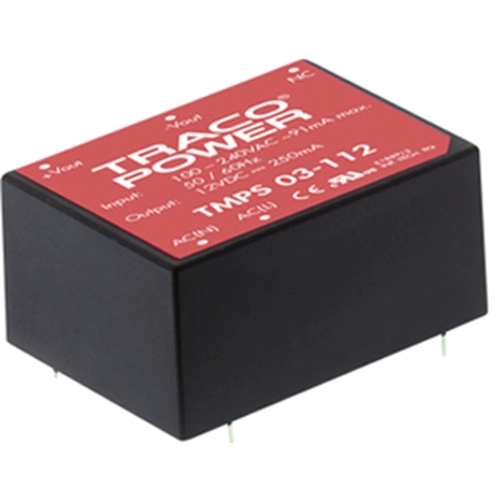

AC/DC converter, 120-370 V, 3 W, 1 output, 15 VDC, TMPS 03-115
Unit Price (€ / pc.)
17.9452 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
17.95 € *
Price list
Quantity
Price per unit*
1 pcs.
17.9452 €
10 pcs.
16.1483 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power supply modules, type Traco TMPS 03.
Sealed plastic housing, compact design, with PCB connection, integrated filter to EN 55022 class B, open-circuit power consumption less than 150 mW; Input voltage range: 85 to 264 VAC, 120 to 370 VDC. Output power: 3.0 W. Input frequency: 47 to 63 Hz. Output voltage tolerance: ±2.0 %. Residual ripple: 70 mVpp. Safety class: II. Insulation voltage:: 3000 VAC. Insulation resistance: min. 100 Mohm. MTBF: 1.2 million h at +25 °C. Dimensions: 25.4 x 25.4 x 16.3 mm.
Technical attributes (type, output voltage, output current, efficiency): TMPS 03-115, 15 VDC, 200 mA, 78 %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 15 VDC | |
| Ausgangsstrom | 200 mA | |
| Bauform | Leiterplattenmontage | |
| Breite | 25.4 mm | |
| Eingangsspannungsbereich | 120-370 V | |
| Höhe | 16.3 mm | |
| Isolationsspannung | 3 kV | |
| Länge | 25.4 mm | |
| Leistung | 3 W | |
| Wirkungsgrad | 78 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
