TMPS 15-124 | TRACO POWER

15 watt AC/DC power supply, household/industrial,85-264VAC, 3000 VAC, PCB mount. (1.07” x 2.06”)

Order No.: 35C1606
EAN: 7613441067759
MPN:
TMPS 15-124
Series: TMPS 15
TRACO POWER
TMPS 15-124 TRACO POWER AC/DC Converters

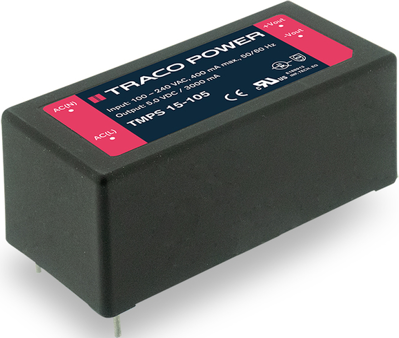

Image may differ
Unit Price (€ / pc.)
32.9630 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
32.96 € *
Price list
Quantity
Price per unit*
1 pcs.
32.9630 €
5 pcs.
29.6667 €
*incl. VAT plus shipping costs
**Subject to prior sale

AC/DC Power supply, TMPS 15-124, TRACO POWER

The TMPS 15 is a of fully encapsulated AC/DC power supplies for household, building automation and industrial applications. Thanks to its very low no-load power consumption of <100 mW, the TMPS 15 meets the ErP directive for energy efficient devices of the European Union. All TMPS 15 power supplies are prepared for protection class II applications and come with an integrated EN 55032 class B EMI filter. The reinforced isolation, high power density and excellent peak power capability make the TMPS 15 a first choice for demanding applications.

Technical specifications
Number of outputs 1
Output voltage DC 24 VDC
Output current 625 mA
Design PCB mounting
Width 27.2 mm
Input voltage AC 85-264 VAC/120-370 VDC
Height 23.5 mm
Isolation voltage 3 kV
Length 52.4 mm
Power 15 W
efficiency 84 %
Logistics
Country of origin TW
Customs tariff number 85044083
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
