TMW 24-105P | TRACO POWER

24 Watt AC/DC module, medical/household, 85-264 VAC, outlet box mount., IP68 housing, THT

Order No.: 35C1673
EAN: 7613441064925
MPN:
TMW 24-105P
Series: TMW
TRACO POWER

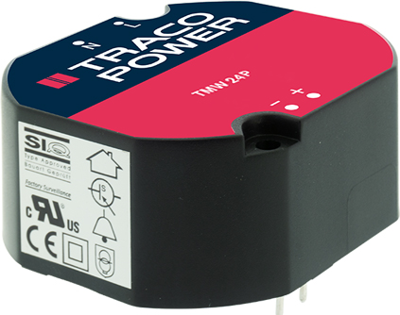

TMW 24-105P TRACO POWER AC/DC Converters
Image may differ
Unit Price (€ / pc.)
43.0066 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
43.01 € *
Price list
Quantity
Price per unit*
1 pcs.
43.0066 €
5 pcs.
38.7107 €
*incl. VAT plus shipping costs
**Subject to prior sale

AC/DC Medical power supply, TMW 24-105P, TRACO POWER

The TMW 24P is a fully encapsulated AC/DC power supply designed for medical, household, and industrial applications. All models comes in a compact, dust resistant, and waterproof IP68 housings, are IEC/EN 62368-1, IEC/- EN 60335-1 and IEC/EN 60601-1 3rd edition compliant and are certified for 2xMOPP. Featuring a reinforced isolation, the TMW 24P power supply is prepared for protection class II applications. It`s wide operating temperature range from -20°C to +80°C makes them ideal candidates for demanding applications.

Features

  • Fully encapsulated, dust resistant, and waterproof
  • Mountable in wall outlet boxes
  • Short-circuit protection (SCP)
  • Overvoltage protection (OVP)
  • Overtemperature protection (OTP)
Technical specifications
Number of outputs 1
Output voltage DC 5.1 VDC
Output current 4 A
Design PCB mounting
Width 51 mm
Input voltage AC 85-264 VAC
Height 24.5 mm
Isolation voltage 4 kV
Length 53 mm
Power 20.4 W
efficiency 85 %
Logistics
Country of origin CN
Customs tariff number 85044083
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
