TMW 36-124P | TRACO POWER
AC/DC converter, 85-264 VAC, 36 W, 1 output, 24 VDC, TMW 36-124P
Unit Price (€ / pc.)
50.1109 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
50.11 € *
Price list
Quantity
Price per unit*
1 pcs.
50.1109 €
5 pcs.
45.0891 €
*incl. VAT plus shipping costs
**Subject to prior sale
AC/DC Medical power supply, TMW 36-124P, TRACO POWER

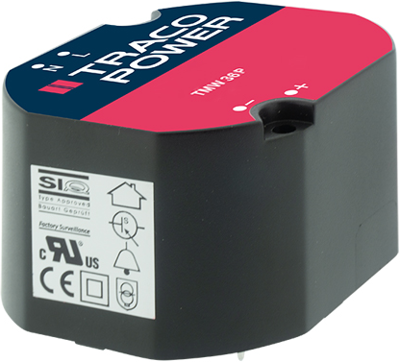

The TMW 36P is a fully encapsulated AC/DC power supply designed for medical, household, and industrial applications. All models comes in compact, dust resistant, and waterproof IP68 housings, are IEC/EN 62368-1, IEC/- EN 60335-1 and IEC/EN 60601-1 3rd edition compliant and are certified for 2xMOPP. Featuring a reinforced isolation, the TMW 36P power supply is prepared for protection class II applications. It`s wide operating temperature range from -20°C to +80°C makes them ideal candidates for demanding applications.
Features
- Fully encapsulated, dust resistant, and waterproof
- Mountable in wall outlet boxes
- Short-circuit protection (SCP)
- Overvoltage protection (OVP)
- Overtemperature protection (OTP)
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 24 VDC | |
| Ausgangsstrom | 1.5 A | |
| Bauform | Leiterplattenmontage | |
| Breite | 51 mm | |
| Eingangsspannungsbereich | 85-264 VAC | |
| Höhe | 33.5 mm | |
| Isolationsspannung | 4 kV | |
| Länge | 53 mm | |
| Leistung | 36 W | |
| Wirkungsgrad | 88 % |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85044083 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
