D04 T24 MWS | TRACO POWER

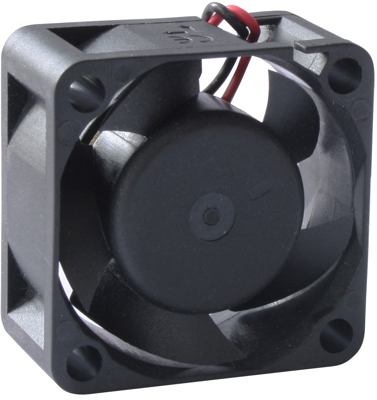

DC axial fan, 24 V, 40 x 40 x 20 mm, 8.4 m³/h, 22.8 dB, slide bearing, TRACO POWER D04 T24 MWS
Order No.: 82B4504
EAN: 4099889479270
MPN:
D04 T24 MWS
Unit Price (€ / pc.)
15.1249 € *
Available: 80 pcs.
Leadtime: 12 Weeks **
Total Price:
15.12 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1249 €
10 pcs.
13.3042 €
50 pcs.
12.3998 €
150 pcs.
11.8643 €
500 pcs.
11.2455 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, D04 T24 MWS, TRACO
The D04 T24 MWS Axial DC fan is a type of fan that blow air along the axis of the fan that is, the fancurved blades force air to move in parallel with the shaft on which the blades rotate. This fan can produce variable airflow and create higher flow rates than centrifugal fan.
Features
- Cable connector 300 mm, stranded wire stripped, tinned
- Housing and blades in thermoplastic - UL 94V-0
- Protected against blocking
- Reverse polarity protected

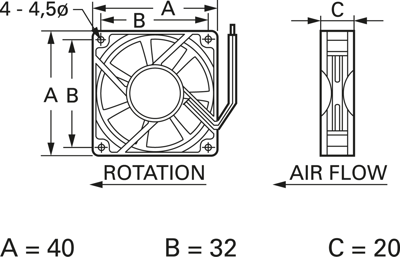

Technical specifications
| Version | DC axial fan | |
| Width | 40 mm | |
| speed | 4500 1/min | |
| Height | 40 mm | |
| Type of bearing | slide bearing | |
| Rated voltage | 24 V | |
| Sound pressure level | 22.8 db | |
| Depth | 20 mm | |
| Volume flow | 8.4 m³/h |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
