TCI 500-148-T | TRACO POWER

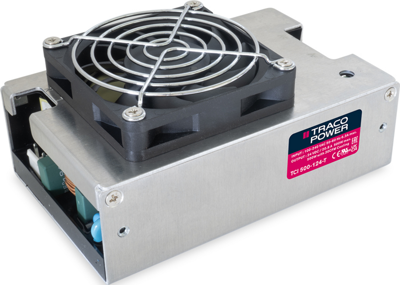

AC-DC power supply, 48 VDC, 10.41 A, 500 W, TCI 500-148-T
Unit Price (€ / pc.)
194.9815 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
194.98 € *
Price list
Quantity
Price per unit*
1 pcs.
194.9815 €
5 pcs.
175.4893 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power supply, TCI 500-148-T, TRACO POWER
The TCI 500 is a 500 Watt forced air cooled AC/DC encased power supply with a 4250 VAC reinforced isolation system. Traco Power’s new TCI line focuses on maximizing the proficiency of conduction cooled systems as it offers superior temperature behavior when mounted on a metal chassis or baseplate. Excellent efficiency of up to 92% allows the TCI 500 to operate from -30 to +70°C with load derating. It also meet OVC III requirements and can operate at up to 5000 m altitude. Active power factor correction, EMC characteristics dedicated for applications in industrial/automation and test & measurement fields and high reliability make the new TCI line an ideal solution for any demanding industrial application.
Features
- Forced air cooled design approach
- I/O reinforced isolation
- High efficiency up to 92%
- Protection class I prepared
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 48 VDC | |
| Ausgangsstrom | 10.41 A | |
| Breite | 83 mm | |
| Eingangsspannungsbereich | 90-264 VAC/127-370 VDC | |
| Länge | 130 mm | |
| Leistung | 500 W | |
| Tiefe | 62.3 mm | |
| Wirkungsgrad | 92 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044083 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
